 Topic: Durso rate ?
Posted: May 13 2007 at 10:37am |
|
I have two drains in the new 90g. They are both 1"
bulkheads. I would like to know if it will be possible to get
them to work evenly, or if I should make 1 the main drain, and make 1
an emergency drain if the water level gets too high. If the
primary one gets plugged I would just have an open stand pipe for the
second just below the top of the tank that could prevent an overflow.
Will the primary durso be able to handle the 1000-1200gph from the return pump?
Thanks,
Fax
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
 |
Mark Peterson
Paid Member
Joined: June 19 2002
Location: Murray
Status: Offline
Points: 21436
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 11:08am |
One 1" Durso will not handle that much flow and still work properly to avoid flooding in a power outage. I'd use both with proper screening to prevent snail shells from clogging them.
Is the Durso inside an overflow? If so, you might consider removing both and filling the overflow with bioballs to prevent clogging and quiet the waterfall.

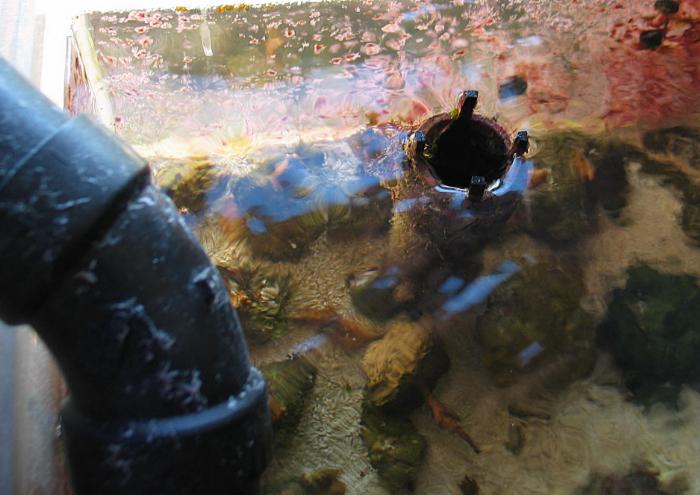

On the modified durso's that I made, an expanded diameter at the top was simple to do with a reducing coupler. It allowed the durso to drop more water. The modified durso can be seen in the pics below. I believe this one went from 1" bulkhead to 1.5". The increased circumference makes a wider spillway. Dion/Holdencraft33 may still be using the one I made for the 120 gal Stingray tank. It expands to 2" diameter.
|
Reefkeeping Tips, & quick, easy setup tricks:www.utahreefs.com/forum/forum_posts.asp?TID=9244 Pay it forward - become a paid WMAS member
|
|
smatney
Guest
Joined: July 08 2004
Location: United States
Status: Offline
Points: 1835
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 12:03pm |
Mark's right - a plugged SINGLE durso is what caused our flood and electrical fire.
|
|
Susan Matney
Farmington, UT
|
|
fj40fax
Guest
Joined: November 04 2004
Location: United States
Status: Offline
Points: 1261
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 12:11pm |
|
If I run them both as dursos can I get them to run evenly? Will
one do most of the work while the other does little or siphons
completely?
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
|
fj40fax
Guest
Joined: November 04 2004
Location: United States
Status: Offline
Points: 1261
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 12:12pm |
|
Oh and I have slip fit bulkhead screens for both if needed...
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
|
fj40fax
Guest
Joined: November 04 2004
Location: United States
Status: Offline
Points: 1261
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 12:13pm |
|
Seems like I remember Jon saying that he had 1800gph running through a 1" durso somewhere.
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
|
jbo22
Guest
Joined: May 03 2006
Status: Offline
Points: 70
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 8:10pm |
|
I would just do one durso, go with less flow through it and use the other in a closed loop. You really don't need that much flow into your sump, especially if you are running a closed loop to get a lot of flow in your main tank.
|
|
fj40fax
Guest
Joined: November 04 2004
Location: United States
Status: Offline
Points: 1261
|
Post Options
Thanks(0)
Quote Reply
Posted: May 13 2007 at 8:37pm |
|
Closed loop is out, Instead I'm using 3 hydor Kaoralia 3's for 2400ish gph. Way less power and fewer holes in the tank.
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
|
Corey Price
Guest
Joined: August 25 2004
Location: Farmington
Status: Offline
Points: 2567
|
Post Options
Thanks(0)
Quote Reply
Posted: May 14 2007 at 8:39am |
|
Redundancy is a good thing. Prevention is definitely better, IMHO.
|
|
jfinch
Guest
Joined: March 06 2003
Location: Pleasant Grove
Status: Offline
Points: 7067
|
Post Options
Thanks(0)
Quote Reply
Posted: May 14 2007 at 10:24am |
I have two dursos on my 125 gallon tank and they work together without any problems.
And I've seen a single 1" durso handle the unrestricted output from a Mag18.
Use both overflows. Murphy says that one will eventually plug off on you!
|
|
|
|
faviasteve
Guest
Joined: June 30 2004
Location: Seychelles
Status: Offline
Points: 455
|
Post Options
Thanks(0)
Quote Reply
Posted: May 14 2007 at 1:47pm |
I'd use both as drains with a durso on each. Do you have one overflow box or two?
*EDIT* My comments about needing to have dursos in seperate overflows be at the same height were wrong. The water level in the tank is set by the level of the lowest overflow box, not the durso inside the overflow. Sorry for the bad info.

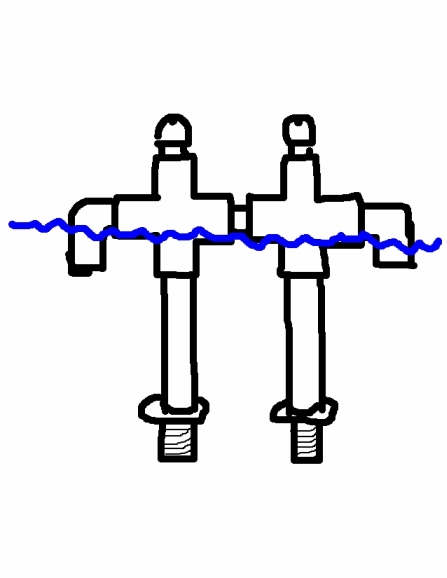

*This is still true* If both drain holes are in the same overflow box, making a "double-durso" isn't very difficult if you have room inside the overflow box. I have 1200 gph going through a double-durso like the drawing below. Each pipe takes 1/2 of the water and it's just as quiet as two single dursos.
Edited by faviasteve - May 14 2007 at 5:39pm
|
|
Steve Burton
Logan, Utah
|
|
Dion Richins
Presidency
Joined: April 03 2005
Location: Farmington
Status: Offline
Points: 11664
|
Post Options
Thanks(0)
Quote Reply
Posted: May 14 2007 at 2:16pm |
|
Why would height be an issue. (unless the durso's are in the same overflow box) The overflow boxes will take the water as it comes in and the durso's will drain as it comes in. Even if one is 2" lower than the other. I have 2 -1400gph pumps returning on my 125 with 2 durso overflows and it keeps up just fine.
|
|
|
|
fj40fax
Guest
Joined: November 04 2004
Location: United States
Status: Offline
Points: 1261
|
Post Options
Thanks(0)
Quote Reply
Posted: May 14 2007 at 3:47pm |
|
They are in the same overflow box, and there is likely room for the
Double-D (D squared, as I like to call it). Add bulkhead screens
to that image and it would be perfect. I can see where that would
level out the flow between the two.
Fax
|
|
Fax 318-3632
90g 2x250W 14kK MH
Sump, Fuge, G3, UV, O3, ACIII
Pleasant Grove, UT Across State Street from the Purple Turtle
Adjustments and Massages for Frags!
|
|
