steel tank stand

 Post Reply Post Reply
nsfw dave View Drop Down

Joined: October 24 2011
Location: Clinton
Status: Offline
Points: 366
Post Options Post Options   Thanks (0) Thanks(0)   Quote nsfw dave Quote  Post ReplyReply Direct Link To This Post Topic: steel tank stand
    Posted: May 05 2018 at 6:31pm

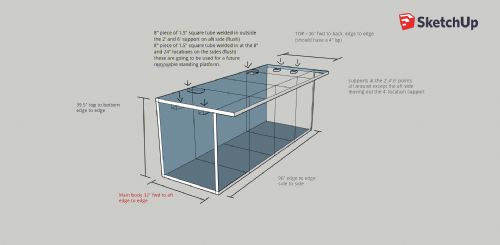

anyone see any flaws here... its steel, 1.5 tube   its going in a wall which is why there is a 4" overhang.. a 96x 36x 32 will be sitting on top (glass)
480 in wall in progress
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 23965
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: May 07 2018 at 8:01am
You might want to consider some diagonal bracing in some of the corners as you are placing a lot of strain on the welds at each corner if there is any horizontal strain put on them. This movement could cause a collapse.

Will the 4" overhang be resting directly on the wall framing? If not you may run into issues with the steel flexing and causing the joints of the glass tank failing or the glass cracking.
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
