Jeff, love the choice on the Lumia array :)

Have you seen their new 100's? Awesome stuff.

We should work on a raspberry pi controller together that gives full access to all channels and allows a true reciprocity of the wavelengths offered by the sun as it travels over the sky. Build the ultimate LED light and controller.

Edited by Pete Moss - December 15 2014 at 11:30am
125g 90g 2x33g 34g
What stores do I recommend?
Up North: Bill ( Saltwater Paradise 801-317-8115 )
Down South: Jerry ( Reef On 801-563-0600 )

Member of GCFB
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: September 07 2014 at 9:00pm
Let me know when sir. I'll see if I can fit you in.
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Fatman View Drop Down
Guest
Guest
Avatar

Joined: December 23 2011
Location: South Weber, UT
Status: Offline
Points: 1694
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fatman Quote  Post ReplyReply Direct Link To This Post Posted: September 05 2014 at 11:22pm
Very nicely done. I need to get with you to get some help on Eagle board design. I'm tired of trying to see the holes and line up the wires to get them in then soldering each one individually.
February 4: Winter Banquet at the Living Planet Aquarium
Tickets: http://utahreefs.com/store/index.php?route=product/category&path=36
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: September 03 2014 at 6:21pm
Probably time for an update. As most others know Summer usually doesn't leave much time for our boxes of water. Mine is not much different. So other than regular maintenance and a couple of corals. There hasn't been much change with the tank (unless you count the Briopsys outbreak that is almost gone now).

Most of my time was spent working on trying to get my new lights put together and working on the new 40B. During that time I had a few people (that saw my pictures I posted) ask me about building some lights for them. I was so busy I told most of them no. Besides I hadn't even finished the software for them yet. Finally I said yes to someone. So while my light is almost done. Someone else is going to actually have my personally designed lights on their tank before me. I'm still waiting for the last set of parts to show up so they aren't quite complete, but they are sooooo close.

Here are a couple of updated pics. This is the tank side of the fixture. It is completely wired and complete. I just need to add the plexi cover and the other end cap. I'm waiting to put those on until the top is done so that it doesn't get scratched.



Here is the almost complete top. The driver board is just waiting on those last connectors to get here so I can finish connecting the wires to them. Other than that they are finished. The driver boards can be mounted with the electronics up or down. I think they look cool up because you can see all the components and I have LEDs on the board that let me monitor the status of the board at a glance! .



As you can see from both of those pictures. These lights are neat, clean and good looking. Here is a sneak peak of what one lucky reefer is getting to put over his tank very soon!





That's 420 Watts of Cree and Exotic LED power in an incredibly neat and compact setup. Each fixture will have two small cables going to it. A two wire lamp cord type cable from the power supply to the board and an Ethernet cable that connects the fixtures together and then to the Apex. My tests show that you can hook 8 of these together on a single Apex! That would be an awesome setup. Anybody game? I know how to make them!   Krazie

My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
ReefdUp View Drop Down
Guest
Guest
Avatar

Joined: March 20 2011
Location: South Weber
Status: Offline
Points: 4166
Post Options Post Options   Thanks (0) Thanks(0)   Quote ReefdUp Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 9:22pm
LOL! Pfffttttt! If I ever get more than 6 hours of sleep and don't have a baby crying, then maybe. BTW, funny story on my lights. They're awesome now. (We'll chat later.)
www.reefdup.com
Diving since 2009, reefkeeping since 2007, & fishkeeping since 1987
200g, 75g, & 15g Systems
PADI Advanced Open Water
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 8:47pm
ReefdUp I may have extras if you would like to get rid of all those Meanwell drivers and be able to dim to 0. Krazie
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Mark Peterson View Drop Down
Paid Member
Paid Member
Avatar

Joined: June 19 2002
Location: Murray
Status: Offline
Points: 21436
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mark Peterson Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 8:22pm
Your stuff is awesome. Big smile
Reefkeeping Tips, & quick, easy setup tricks:
www.utahreefs.com/forum/forum_posts.asp?TID=9244
Pay it forward - become a paid WMAS member
Back to Top
ReefdUp View Drop Down
Guest
Guest
Avatar

Joined: March 20 2011
Location: South Weber
Status: Offline
Points: 4166
Post Options Post Options   Thanks (0) Thanks(0)   Quote ReefdUp Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 7:24pm
Drooling over here! Very awesome! Wish my electronics knowledge was this intense. I love the MakersLED heatsinks!
www.reefdup.com
Diving since 2009, reefkeeping since 2007, & fishkeeping since 1987
200g, 75g, & 15g Systems
PADI Advanced Open Water
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 5:56pm
Well here we go with some pics of the craziness.

Here is the pile of parts with all of the pieces and components.


Here is the heatsink that everything will be going on.


Here is the Lumia LED array with 5 Channels of LEDs


The start of soldering all the parts on the board.


Here is the board with the components partially soldered on. You can see the battery holder the Micro processor, the real time clock, and a couple of the headers.

Here is the board with all the parts and sockets soldered on (well minus the connectors that I ordered wrong and the two diodes that I forgot to order). The LDD drivers are in sockets so that they can be replaced or the amperage can be changed for use with other LED setups.


And this is the board with the LDDs and the SCW voltage converter installed. The board supports upto 6 channels of dimming. My LED array only has 5 channels and so the 6th channel will be used to control a couple of cooling fans that will only be turned on when the Heatsink temperature gets too warm. There is a temperature connector on the board just above the silver battery holder on the right hand side of the board. The blue jumper just to the left of that let's me choose whether the fans are controlled by channel 6 on the board or on all of the time.


Next is loading up the Microcontroller with the program and verifying that everything is working correctly. Then I will be building a second one to go over my frag tank. Krazie

My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: June 02 2014 at 11:20am
I built the first board up and have everything populated minus a couple of diodes that I forgot to order and the input connectors that I ordered the wrong parts for. I took a bunch of pictures and will try and get them posted tonight. Can't wait to put this thing on the tank and see what it can do.

Krazie
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: May 20 2014 at 8:57am
The last few parts get here this week! I got all of the chips and parts for the circuit boards (I.E. resistors, capacitors, diodes, LED's, Micro controllers, Real time clocks, batteries, etc...). The boards should be here this week and I can try and get one put together before the weekend.

I also built a DIY break out box for my Apex that will be replacing my JBJ Ato for topoff. I got in on the public beta for Fusion (Finally!) and have been playing around with the new feature of Lighting wizard that works with the var speed ports of the Apex. I have a starter set of tables created that I will be running the new LED's with as soon as I get them built up.

It's all getting close now and I can't wait to add these new toys to my setup! [:0]

Krazie
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: May 13 2014 at 6:04pm
I know it's been forever since I posted on this tread. I got all kinds of backed up on my projects due to an algae outbreak in my tank and then my controller decided to have a melt down.

The controller is now running again and the algae is receding but not gone. I've got some more CUC coming in to help finish up the rest.

I posted that I had some new stuff coming in that I would be working on. It got a little ugly but now I believe all the correct parts are on their way.

As you might be able to tell from this thread I have kind of gotten the LED fixture bug and have been spending quite a bit of (more) time researching and then designing some things for my systems. While I like the retro fit I did on my stock hood and the dimmer control that I now have I wanted to go a step further as I have a controller and I want to be able to control the lights with it as well as have control of my lights remotely.

So after looking at what Fatman was doing on a small driver board he was using (and posted info on the forums here) I decided to design my own. Well, what started out as a driver board became a bit more. Here are the primer/teaser pics of what I'm doing.



I designed a circuit board that will allow up to 6 channels of control. It uses Meanwell LDD-H drivers. It also has a microcontroller on it that allows it to be programmed to do different things. The original intent of the controller was to provide a converter to go from the 0-10V analog dimming signal and convert it to PWM for the drivers on the board. That has evolved a bit but will still be the main function for the one I'm putting on my 28g nano. The board also has an input for a temperature sensor and connections for 2 fans. This allows me to use the same setup to be a stand alone Light controller for my other tanks.





I created a custom cable that connects to my Apex variable speed ports and then will connect to my new circuit board using an Ethernet cable. This will provide all 4 channels of control from the Apex and then the other two channels are controlled in software on the board (paired with one of the other outputs).

The circuit boards are ordered and have been shipped and I have most of the other parts already here. I am just waiting for the last few parts and the boards to get here so that I can build up a couple to test out. I have already written the code to do the 0-10V to PWM controls for the first tank. The code for the stand alone LED controller is almost done as well.

I bought a MakersLED heatsink and a new Lumia 5.2 dream chip (all Cree LEDs) that will be going on that heatsink. I designed the board so that it slides right into th egroove on the top of the heatsink so that no other mounting hardware is needed.

I'll be posting a bunch of new stuff about it as the build comes along! Krazie
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: December 11 2013 at 8:33am
Have a few new pieces of equipment ordered that I am really looking forward to! Can't wait for them to get here so I can set them up and start playing!


Edited by Krazie4Acans - December 11 2013 at 8:33am
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: December 06 2013 at 10:32am
Ok, just watch the head height on that little pump.
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
08TRDOFFROAD View Drop Down
Guest
Guest
Avatar

Joined: March 16 2011
Location: Herriman
Status: Offline
Points: 350
Post Options Post Options   Thanks (0) Thanks(0)   Quote 08TRDOFFROAD Quote  Post ReplyReply Direct Link To This Post Posted: December 06 2013 at 10:31am
Originally posted by Krazie4Acans Krazie4Acans wrote:

Good Choice. What pump are you gonna use?


Just going to use the included pump.

Your new additions are beautiful!


Edited by 08TRDOFFROAD - December 06 2013 at 10:31am
Back to Top
Mike Savage View Drop Down
Guest
Guest
Avatar

Joined: July 15 2005
Location: Murray
Status: Offline
Points: 19173
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mike Savage Quote  Post ReplyReply Direct Link To This Post Posted: December 05 2013 at 4:42pm
Beautiful for sure!


Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: December 05 2013 at 3:31pm
I added some new corals and thought I better add an update for that too.

The first is an update on my dream Acan that I got at the MWRF. Here is an update on him. He must be a she because somebody has a baby!



Added blue Hornets. You can also see the branching blastos that I got at MWRF and forgot to post about.



Here's a picture of the Dark Pheonix I got at MWRF. I can't get the colors to come out on my phone so this picture is really  just to catalog it. They look so much better than this in person. The one on the bottom right is the closest to when you actually see. You can see the yellows and pinks in that one but still much less than the actual polyp.



My new Dendros. Not really open but they look great now.



Electric Oompa Loompa



CB Frost Bites



Fruit Loops. New frag and they are tiny compared to my others.



Hers my other frag with the larger polyps.



Pink Hippos



Tyree Space Monsters. Really pissed off at me for forgetting they were still in the dip container.



I've had this one for a while now but can't find an ID. Does anyone know what they are? It has become one of my favorite Zoas in my tank. Looks kinda like a PE. Pink Panther Paly maybe?



Then I add a couple of new items to my dream list.

CB Flaming Bugatti Chalice



CB Rainbow Crush Chalice



and CB Romel Watermelon Acro



Hope you enjoy the update. One day I'll get Mike and Nick to come show me how to take good pictures of my tank.

KrazieClown



Edited by Krazie4Acans - December 11 2013 at 8:30am
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: December 05 2013 at 3:07pm
I decided it might be time for an update (actually I finally remembered to get the pics off my phone so I can post them). So here we go.

This is the second stage of my stock LED hood Retro upgrade. If you remember from a previous post the first stage just added more blues around the edge of the stock LEDs. This stage I am replacing most of the stock LEDs with new one and changing up the colors.

First step was to remove the Stock LED Strips from the hood. This was the setup after the first stage of changes. For this next stage I removed the three center LED strips from the fixture and replaced then with individual LED stars of the colors I wanted.

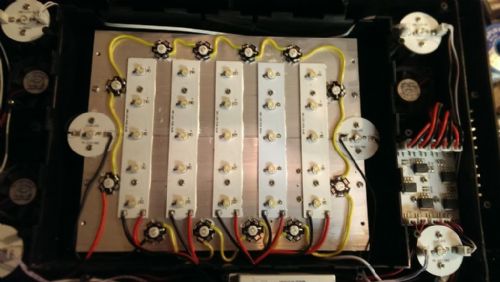

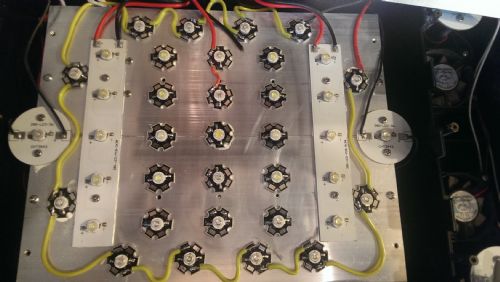

Here are the new LEDs in place and the first two soldered to the source wire.



Then the first row complete, second row complete and third row complete. These short wires take a long time to cut, tin, shape, and solder.

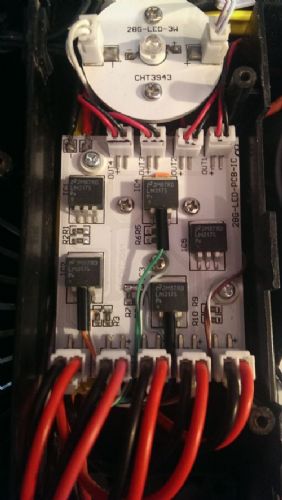

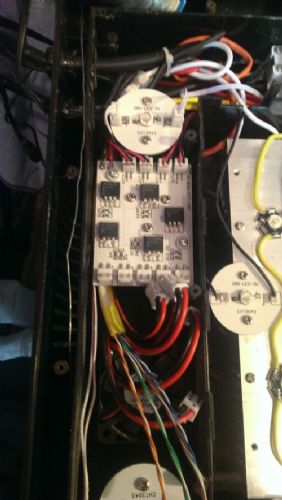

Then I needed to add some dimming control to the stock driver board. Not being able to dim the stock LEDs makes it very hard to acclimate new corals to these lights. So part of thos project is to make them dimmable. In order to do that with the stock driver board, I need to add a POT in series with the current sense resistors that are already on the board. So first thing I did was decide where my dimmer POTs where going to go and run some wires from there to the driver board. You can see it in this next picture. It's the yellow cable coming out from under the driver board, on the left, with the 8 wires coming out of it.



The next thing I had to do was unsolder the center leg from the LM317 chips to allow me to connect these wires to them and the resistors. First picture shows the center legs un-soldered and lifted up. The second picture shows the wires routed and connected to the LM317's with heat shrink in place.





The brown pair is for the next stage of the retro upgrade. Then I needed to install the dimming POTs. I placed them in the back corner on the opposite side of the hood from the driver board. I drilled the holes through the hood and mounted them and then connected all the wires.



Of course I forgot to take a picture of the POTs with the wires attached (I'll get one the next time I have the hood off and pulled apart).

Then I reassembled everything and tested out the upgrade. The colors I added were Neutral white, Deep Red, Green, Cyan, Pink, and cool blue.



Still have the final phase of the retro to complete with those last two LED strips but this is a huge change for now so I'll see how well the corals respond. KrazieClown
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
Krazie4Acans View Drop Down
Admin Group
Admin Group
Avatar

Joined: December 17 2012
Location: Syracuse
Status: Offline
Points: 24177
Post Options Post Options   Thanks (0) Thanks(0)   Quote Krazie4Acans Quote  Post ReplyReply Direct Link To This Post Posted: December 02 2013 at 3:54pm
Good Choice. What pump are you gonna use?
My ocean.
90g (yup, won it!), 40g, 28g, & 10g Systems
PADI Advanced Open Water
Tank Thread:
Back to Top
08TRDOFFROAD View Drop Down
Guest
Guest
Avatar

Joined: March 16 2011
Location: Herriman
Status: Offline
Points: 350
Post Options Post Options   Thanks (0) Thanks(0)   Quote 08TRDOFFROAD Quote  Post ReplyReply Direct Link To This Post Posted: December 02 2013 at 3:54pm
OK! Thanks! I picked up a tunze osomolator nano on the sales over the weekend.
Back to Top
 Post Reply Post Reply Page  <12345 6>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 12.03
Copyright ©2001-2018 Web Wiz Ltd.

This page was generated in 0.234 seconds.
